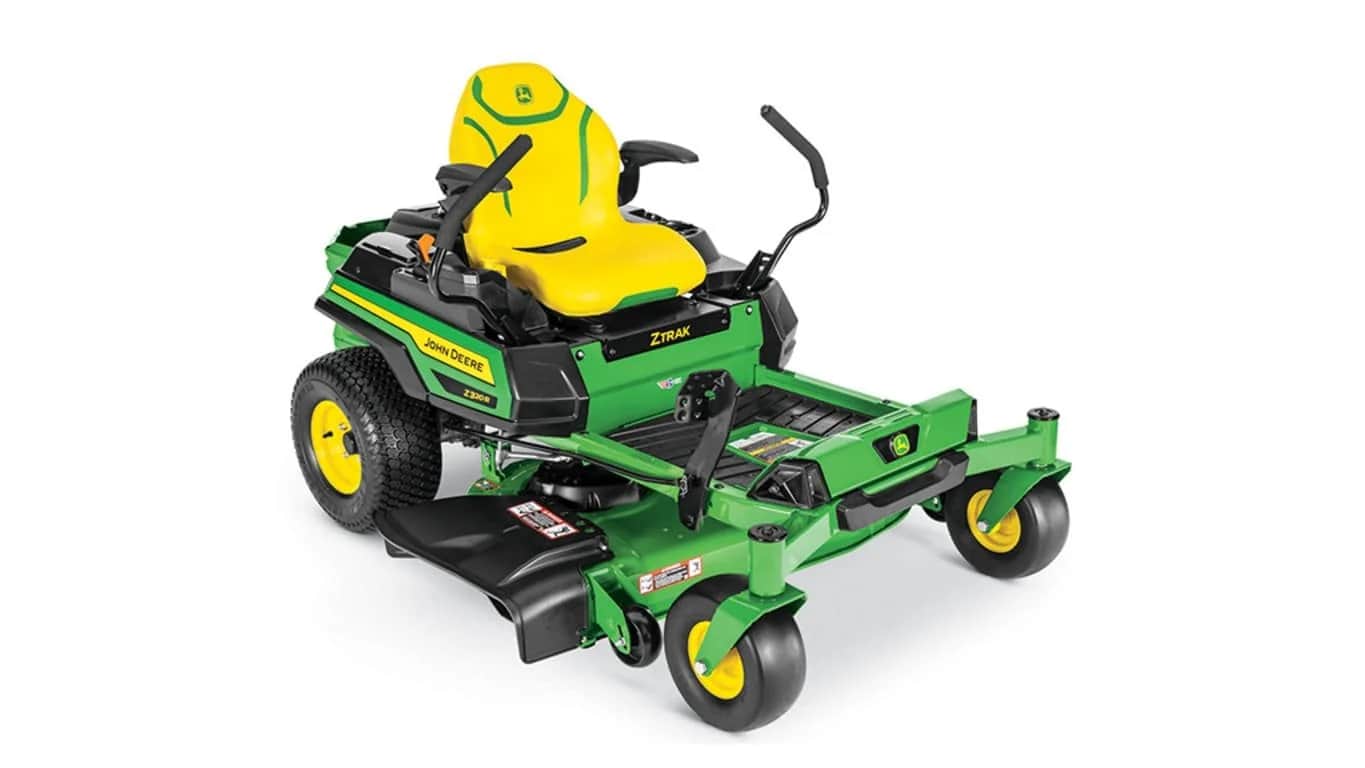

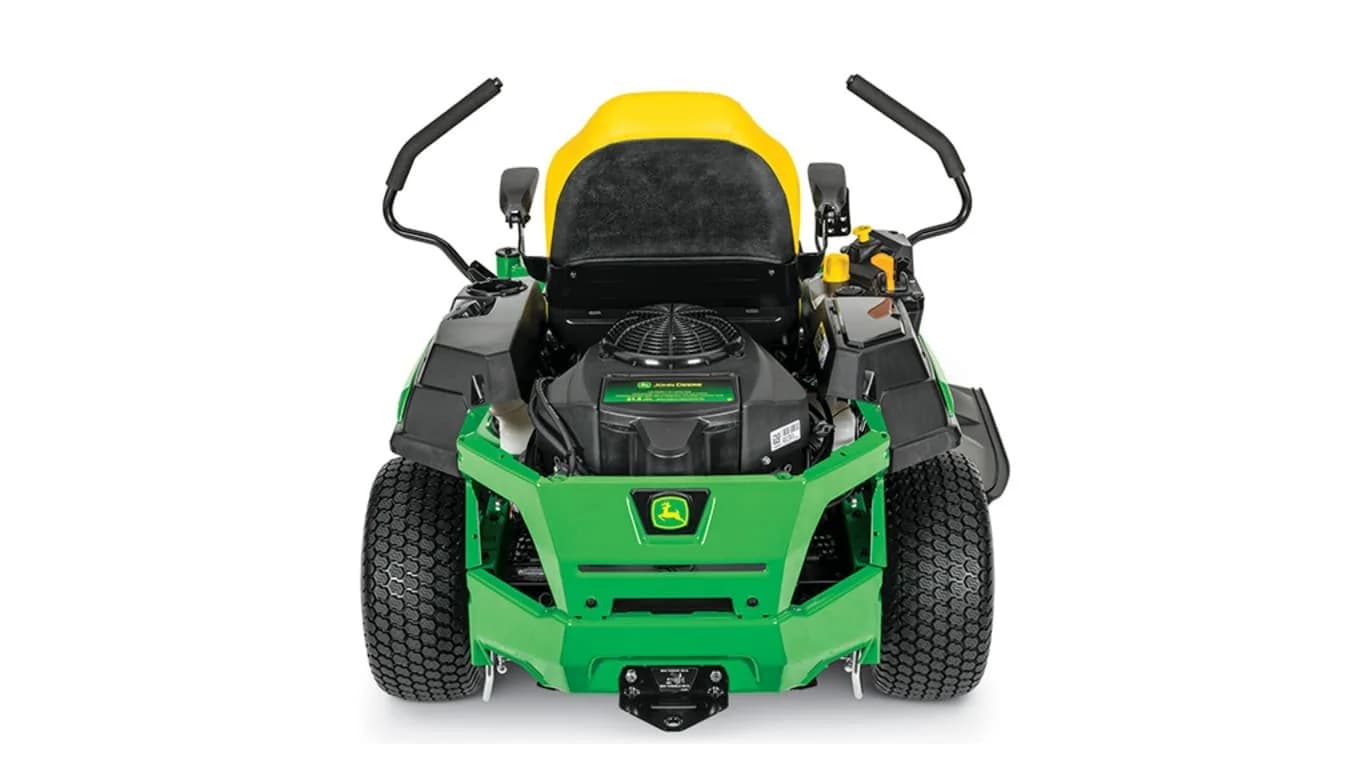

Z20R ZTrak™ Mower with 42-in. Decks

Engine power 21.5 hp 16.0 kW Engine model number FR651V Forward speed 0-7 mph 0-11.3 km/h Front caster tires 11×6-5 Drive tires 18×8.5-8 Seat back height High back with armrests, 20 in. 51 cm Width of cut Accel Deep™ mower deck, 42 in. 107 cm Mulching system Optional MulchControl™ attachment Warranty 3 year or 200 hour bumper-to bumper* (*Term limited to years or hours used, whichever comes first, and varies by model. See the LIMITED WARRANTY FOR NEW JOHN DEERE TURF AND UTILITY EQUIPMENT at JohnDeere.com or JohnDeere.ca/TUWarranty for details.) Key Specs Power 21.5 hp 16.0 kW Model number FR651V Displacement 44.3 cu in. 726 cc Cylinders V-twin Lubrication Full pressure with replaceable filter, capacity, 2.2 U.S. qt 2.1 L Type Overhead valve Battery 12 V 300 CCA Choke/speed control Separate levers Cooling method Air Fuel tank capacity 3.0 U.S. gal. 11.4 L Fuel gauge Translucent tank Engine Dual hydros Hydro-Gear EZT-C with 1-in. (2.5-cm) axles Drive train Forward speed 0-7 mph 0-11.3 km/h Reverse speed 0-3.5 mph 0-5.6 km/h Speed and direction control Twin levers Control adjustment 3 height, 11 positions Travel speed Frame Heavy-duty 2.5-in. x 2-in. (6-cm x 5-cm) front, and 1.5-in. x 2-in. (4-cm x 5-cm) side tubing Primer/paint E-coat/powder Front caster tires 11×6-5 Front caster bearings Sealed ball bearings Drive tires 18×8.5-8 Hour meter Yes Service interval decal Yes Storage compartment Standard covered Cup holder Yes Maximum towing capacity 250 lb 113 kg Chassis Seat back height High back with armrests, 20 in. 51 cm Fore-aft adjustment 2.9 in. 7 cm Seat suspension Two springs Seat Type Foot lift Mower cut height 1.25-4.5 in. 3-11 cm Cut height increments 0.25 in. 0.64 cm Preset cut height Yes Lift system Width of cut Accel Deep™ mower deck, 42 in. 107 cm Type Side discharge Mower deck material 12 gauge 0.105 in. 2.7 mm Mower drive system V-belt Mower deck Type Electric, 105 lb-ft 142 Nm Drive V-belt PTO Wheelbase 49.4 in. 1255 mm Overall length 75.4 in. 1915 mm Width without mower 43.3 in. 1100 mm Width with mower 50.4 in. 1280 mm Width with mower (deflector raised for storage) 46.5 in. 1180 mm Height 43.3 in. 1100 mm Weight 572 lb 260 kg Dimensions Rollover protective structure (ROPS) No Slope operating limit 13 degrees; 10 degrees with Material Collection System Operator presence system Yes Park brake interlock Yes Operator video Yes, online Operation Note 1 Durable Accel Deep Mower Decks are made from 12-gauge steel with double captured mower wheels Note 2 Easily change cut height from 1.25 to 4.5 in. (3 to 11 cm) using the foot lift and cutting height dial Note 3 Integrated park brake is automatically applied when steering levers are stowed outward Warranty 3 year or 200 hour bumper-to bumper* (*Term limited to years or hours used, whichever comes first, and varies by model. See the LIMITED WARRANTY FOR NEW JOHN DEERE TURF AND UTILITY EQUIPMENT at JohnDeere.com or JohnDeere.ca/TUWarranty for details.) Buyer’s notes Mulching system Optional MulchControl™ attachment Rubber floor mat Standard Sun shade Optional Mounted sprayer Not available Protective cover Optional Light kit Standard Material collection system Two-bag cut-and-throw MCS, 6.5 bu 229 L Optional attachments Manufacturing location Greeneville, Tennessee, USA Date collected 3-Oct-22
