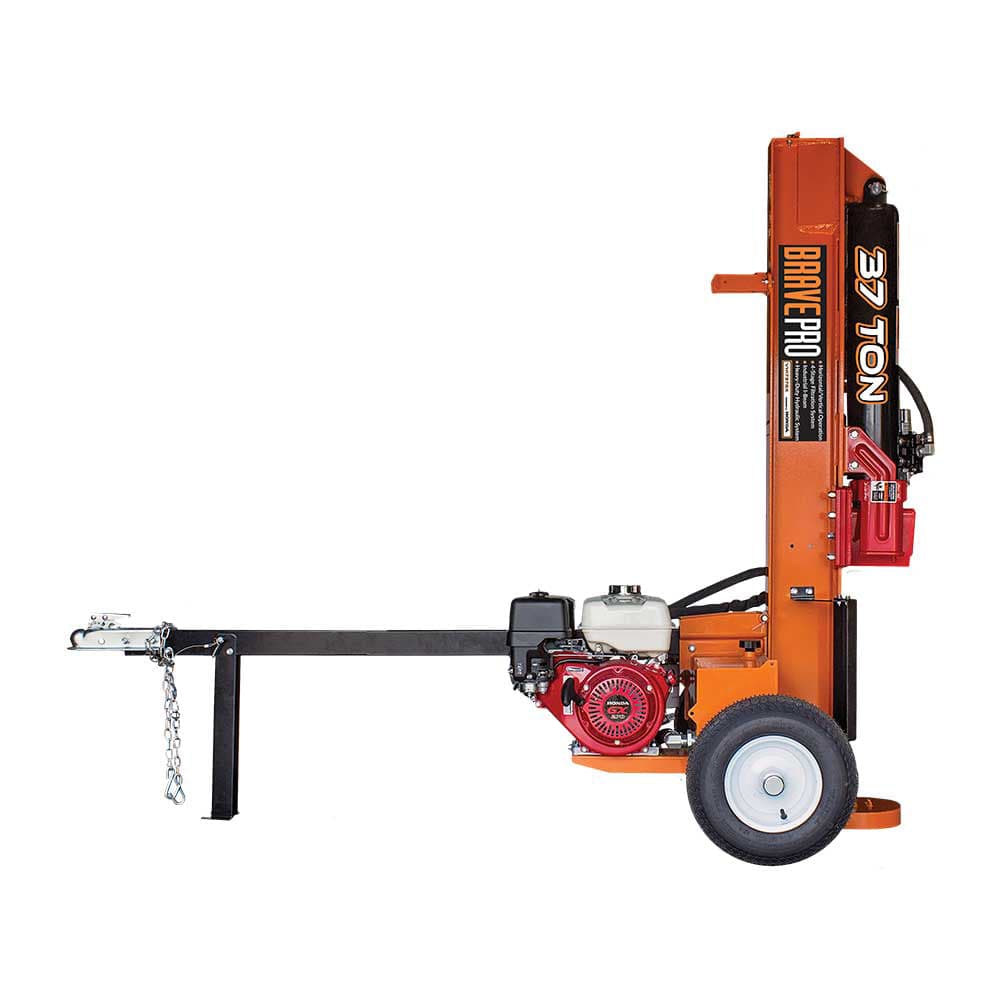

Brave VH1737GX 37-Ton Log Splitter w/ Honda GX270 Engine

Features

• Industrial I-beam construction provides incredible strength
• The 4-stage hydraulic filtration system prevents contamination and damage to the hydraulic system by removing metal and other microparticles; components include a suction strainer, breather cap air filter, return line filter, and magnetic drain plug
• Unique, high-performance wedge design makes splitting easier and more efficient
• Log cradles catch split logs and serve as a work table for large logs
• Heavy-duty log dislodger ejects logs that stick to the splitting wedge protecting the control valve and other hydraulic components from damage
• The convenient lift handle provides added control for quicker, easier, and safer transitions between the vertical and horizontal operating positions
• Industrial cylinder with Halite seals keeps constant and consistent pressure while splitting
• O-ring fittings on the control valve make assembly easier and reduce leaks
• Two-stage pump to handle even the toughest jobs
• The manual tube keeps the owner's manual handy
• Sherwin-Williams powder coat paint to withstand heavy use and weather elements
• Tow-ready with 2-in. ball hitch and chains
• Highway-rated tires
• Optional fenders and engine guard

What's in The Box

• Brave Log Splitter | 37-Ton | Honda GX270
• Owner's Manual

Warranty

• 30 Day Satisfaction Guaranteed

Specifications

SKU	VH1737GX
Brand	Brave
Equipment Type	Log Splitter (Tow-behind)
Cycle Time	14 Seconds
Cylinder Size	5 in. x 24 in. Clevis Type, 2-in. Rod
Displacement	270cc
Dry Weight	550 Lbs
Engine	Gx270
Engine Brand	Honda
Fenders	No
Fuel Capacity for Burner	1.4 Gal
Hitch	2 In.
Hydraulic Capacity	9 Gal.
Log Cradle	Yes
Log Diameter	16 In. Max
Log Length	25 in. Max
Operation	Horizontal And Vertical
PSI	3500
Pump Type	16 Gpm 2-stage
SKU	VH1737GX
Splitting Force (Tons)	37 Tons
Splitting Height	30 In.
Towing Speed	45 Mph
Wedge	8 In. High Carbon Steel
