About this product

* Compatible with the Atomos Ninja V, V+, 5.2, Ultra

With more cameras offering high quality HDMI and SDI video output, the Atomos Ninja V steps in, not only as a stunning monitor but also as a recorder of 4K 60p 4:2:2 10-bit video to on-board SSD drives in edit-friendly ProRes or Avid formats as well as RAW with supported cameras. The Ninja V+ will allow for up to 4K 120p and 8K 30p ProRes RAW recording. The Nauticam NA-Ninja V-S, when used with supported housings and cameras, allows for the connection of the Ninja V over HDMI 2.0 or SDI in addition to providing easy access to the Ninja V controls underwater. This 'S' version allows for the use of the AtomX SDI Module inside the housing to use the Atomos Ninja V as an SDI monitor/recorder or to facilitate SDI cross conversion for a dual/remote monitor configuration.

Technical Specifications

Dimensions	223mm(W) x 169mm(H) x 143mm(D) excl. bulge at rear
Weight in Air	1.67kg
Weight in Water	-0.31kg (incl. Ninja V, AtomX SDI and NP-F970 batt)
Depth Rating	100m

NOTE: HDMI and SDI cables for this housing are SOLD SEPARATELY, you can find the appropriate one in the Recommended Accessories section below.

Only AtomX SSDmini drives are supported in the housing. Conventional SSD in the Atomos Master Caddy are not compatible.

The Atomos Ninja V and Ninja V+

The Atomos Ninja V is an exceptional monitor, featuring a bright 1000 nit 10-bit HDR 5.2" screen that can display over 10 stops of dynamic range with compatible cameras. The monitor includes a variety of exposure and focus assist tools to insure your footage is properly exposed with critical focus. In addition to being an extremely capable monitor, the Ninja V is also a recorder. When used with compatible cameras over HDMI 2.0, the Ninja V can record 4K at 60p in 10-bit 4:2:2 ProRes or DNxHR formats to Atomos AtomX SSDmini solid state drives. The Ninja V+ will allow for up to 4K 120p and 8K 30p ProRes RAW recording. With a 1TB SSDmini drive, the Ninja V can record up to 150 minutes of 4K video.

Complete your setup

The usual order is housing, then port, then gear, then light. Add what you are missing.

accessoryM24D1R205-M28A1R170 HDMI 2.0 Cable (for NA-XT3/XT4/R5 to use with Ninja V housing)$446.72

accessoryHDMI 1.4 Cable for Ninja V Housing in 0.75m Length (for connection from Ninja V housing to HDMI Bulkhead)$548.24

accessoryM28A1R225-M28A1R170 HDMI 2.0 Cable (for NA-BMPCCII/BMPCC6K/S1R/S1H to use with Ninja V housing)$517.64

accessoryM28A2R210-M28A1R170 HDMI 2.0 Cable (for NA-GH5V/E2/E2F to use with Ninja V housing)$517.64

accessorySDI Cable in 0.75m Length ~For Connection Between SDI Bulkheads$375.81

accessorySDI Surface Monitor Cable in 15m Length ~For Connection From SDI Bulkhead to Surface Monitor on Land$649.75

accessoryM16 SDI Bulkhead$182.87

accessorySDI Cable in 0.4m Length ~For Connection from Camera to Underside of SDI Bulkhead$96.47

Specifications

Depth rating100m

Weight in air1.67kg

Weight in water-0.31kg (incl. Ninja V, AtomX SDI and NP-F970 batt)

Dimensions223mm(W) x 169mm(H) x 143mm(D) excl. bulge at rear

SKU17922S

Resources

Exposure Tools

The Ninja V exposure guides include a Waveform for luminance, RGB Parade for color balance, and Vector Scope for hue and saturation. These tools, especially useful for the underwater filmmaker, allow accurate and fast judging of exposure, even in the most uncooperative lighting scenarios. Even when recording Log or HDR footage, using Rec.709 or HLG monitoring displays the video on the screen adjusted to the levels of the chosen standard.

Focus Tools

Critical focus can be achieved using various peaking tools. Focus Peaking Color displays the original color image with the sharpest areas outlined in a selectable color. Focus Peaking Mono provides the same overlay but on a monochrome image. Focus Assist Outline shows only the false color outline on a black background of the sharpest areas.

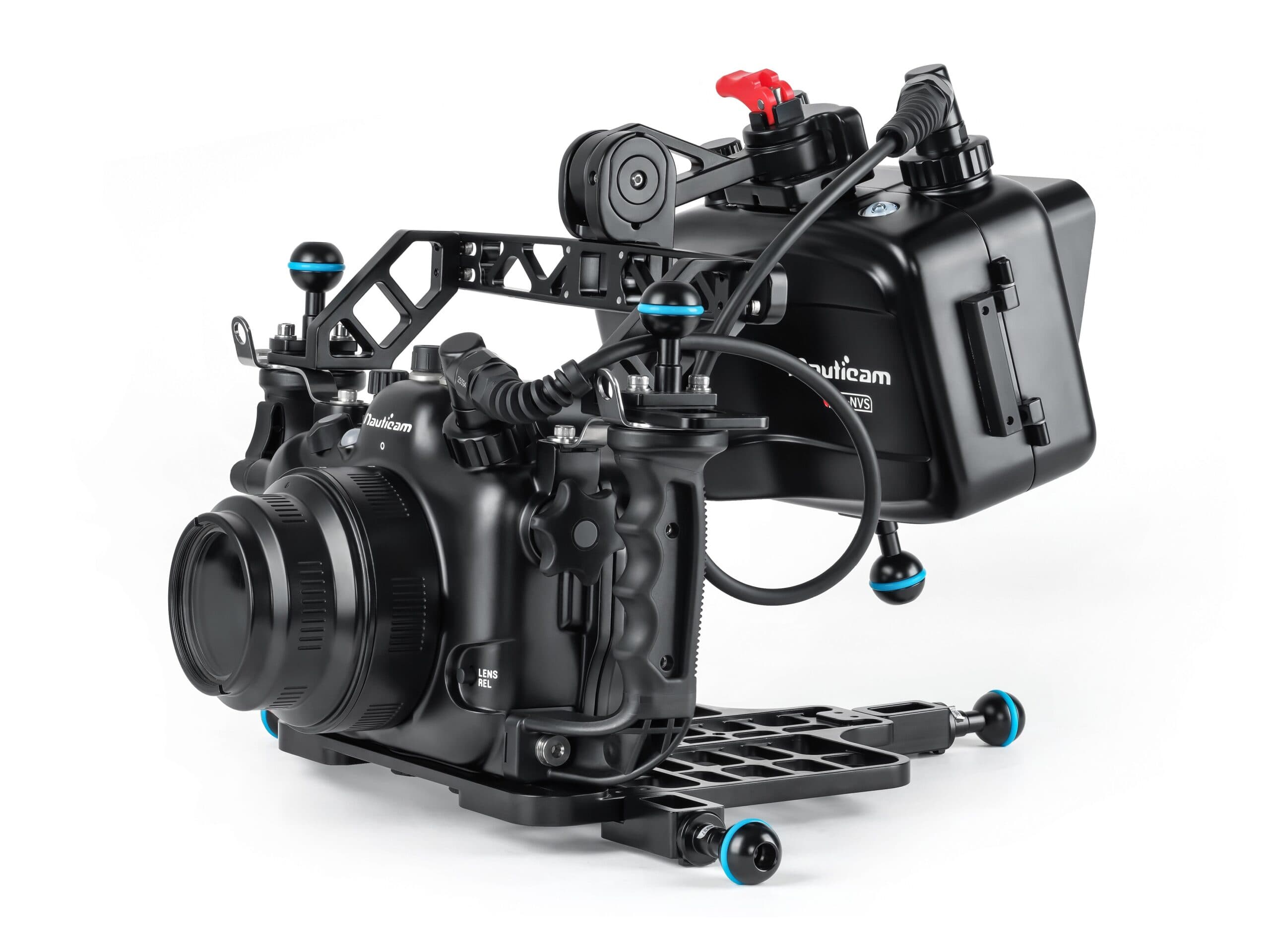

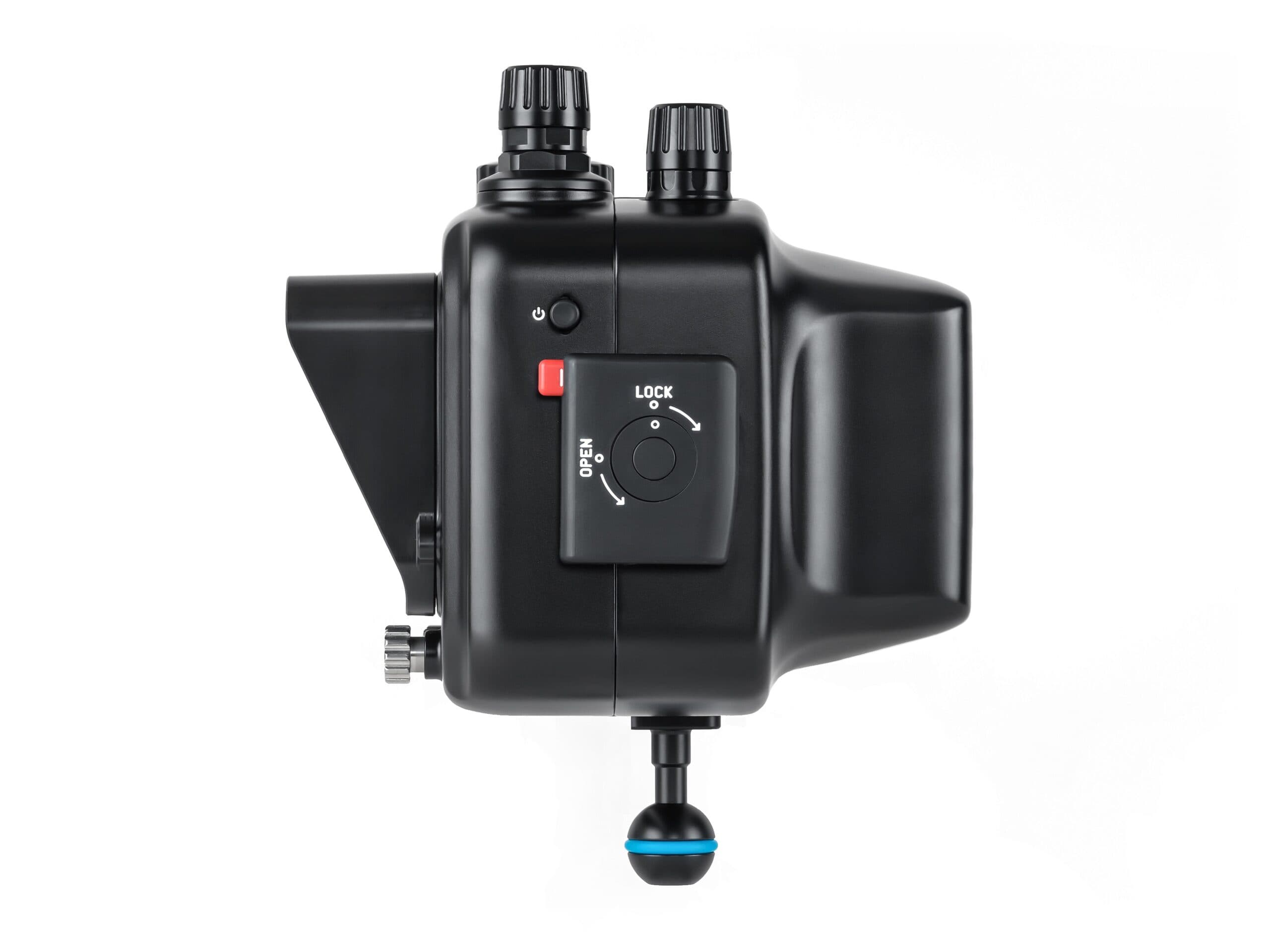

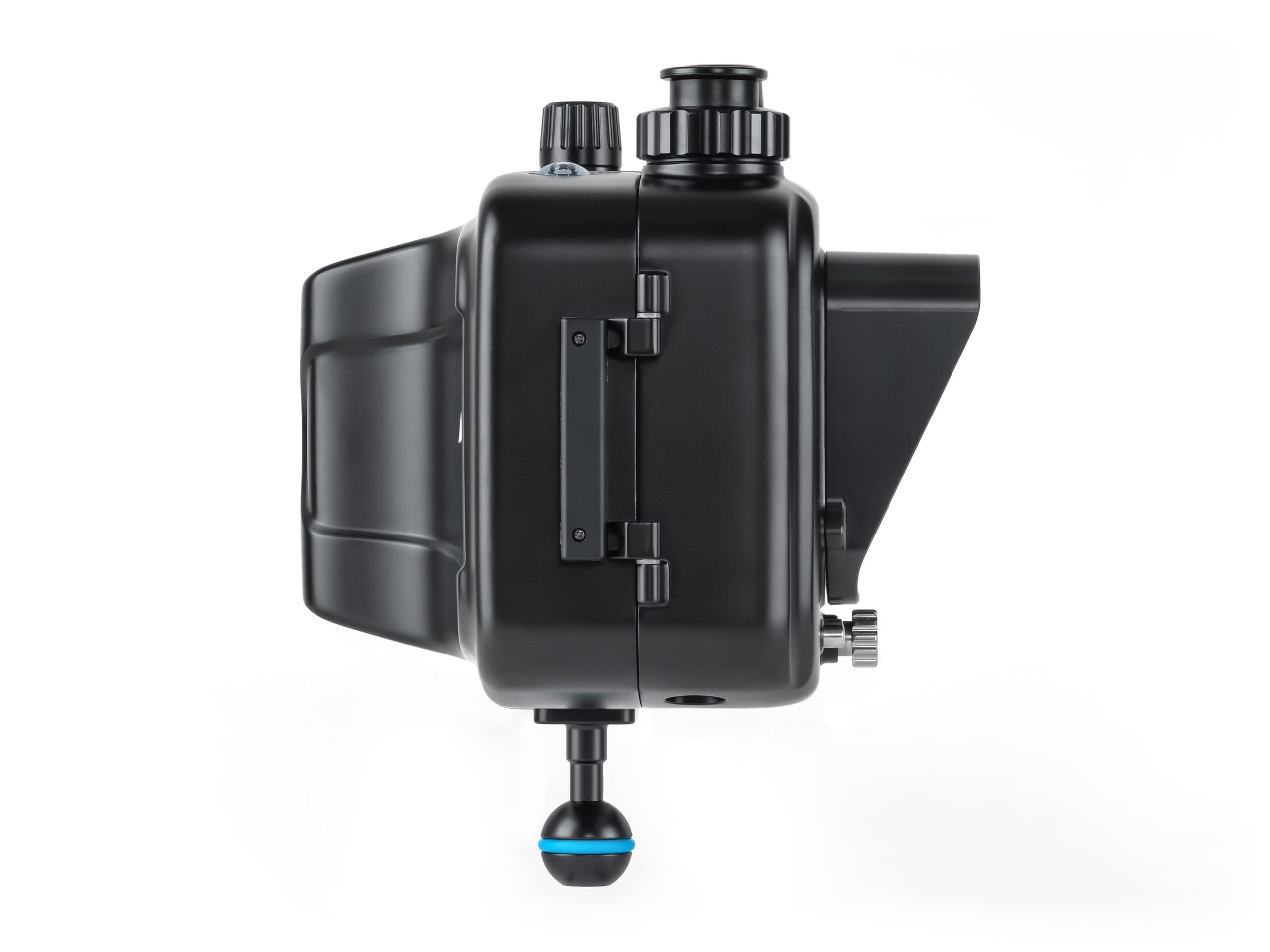

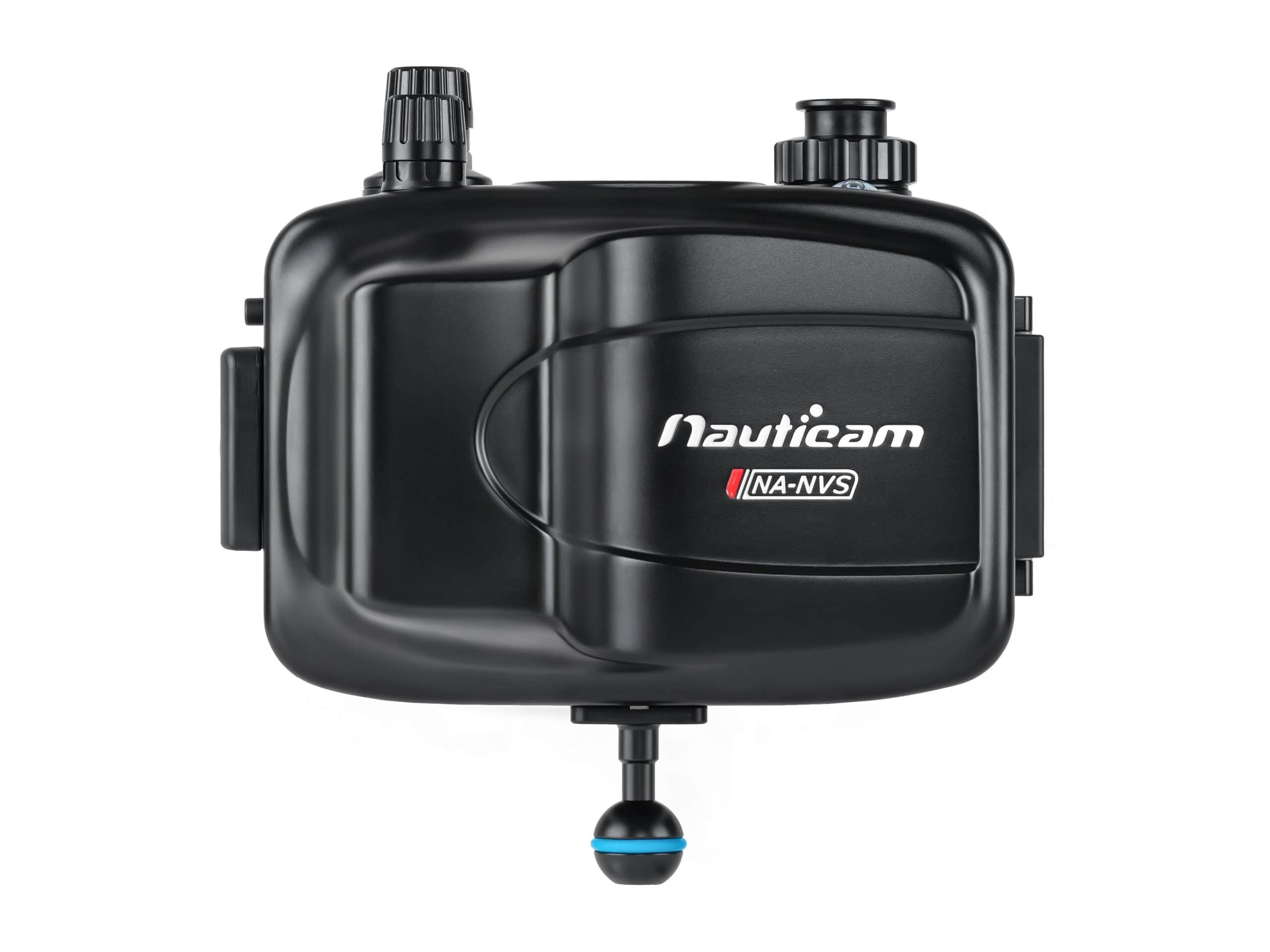

The Nauticam NA-Ninja V-S Underwater Housing

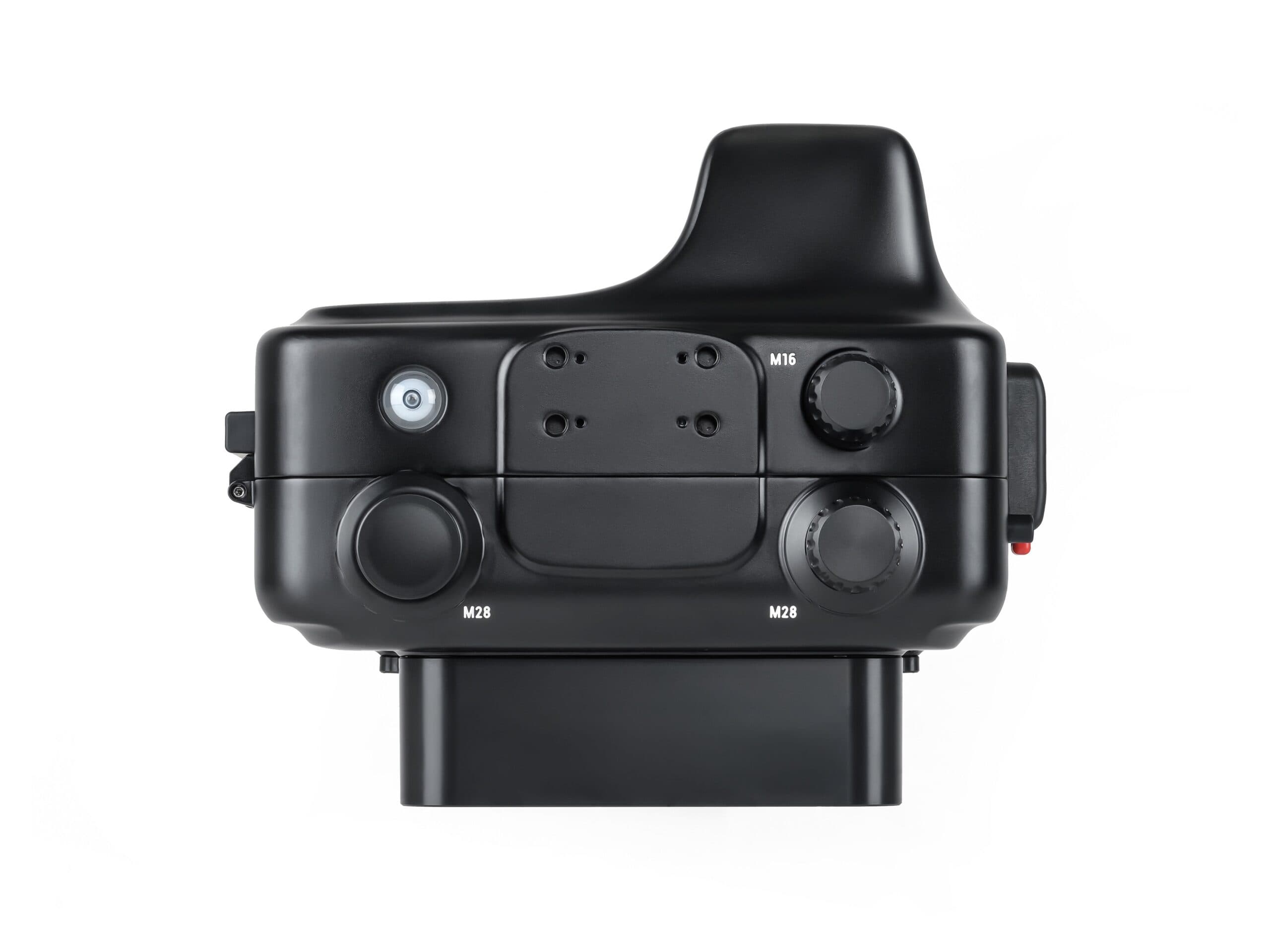

The Nauticam NA-Ninja V-S builds on the strong foundation Nauticam has built with previous Atomos monitor/recorder housings but is built around the new M28 large-bore bulkhead. The M28 on the 'S' housing supports both HDMI 2.0 and SDI via the AtomX SDI Module. The module allows for an SDI connection to the monitor or for providing HDMI-SDI cross conversion.

Setup

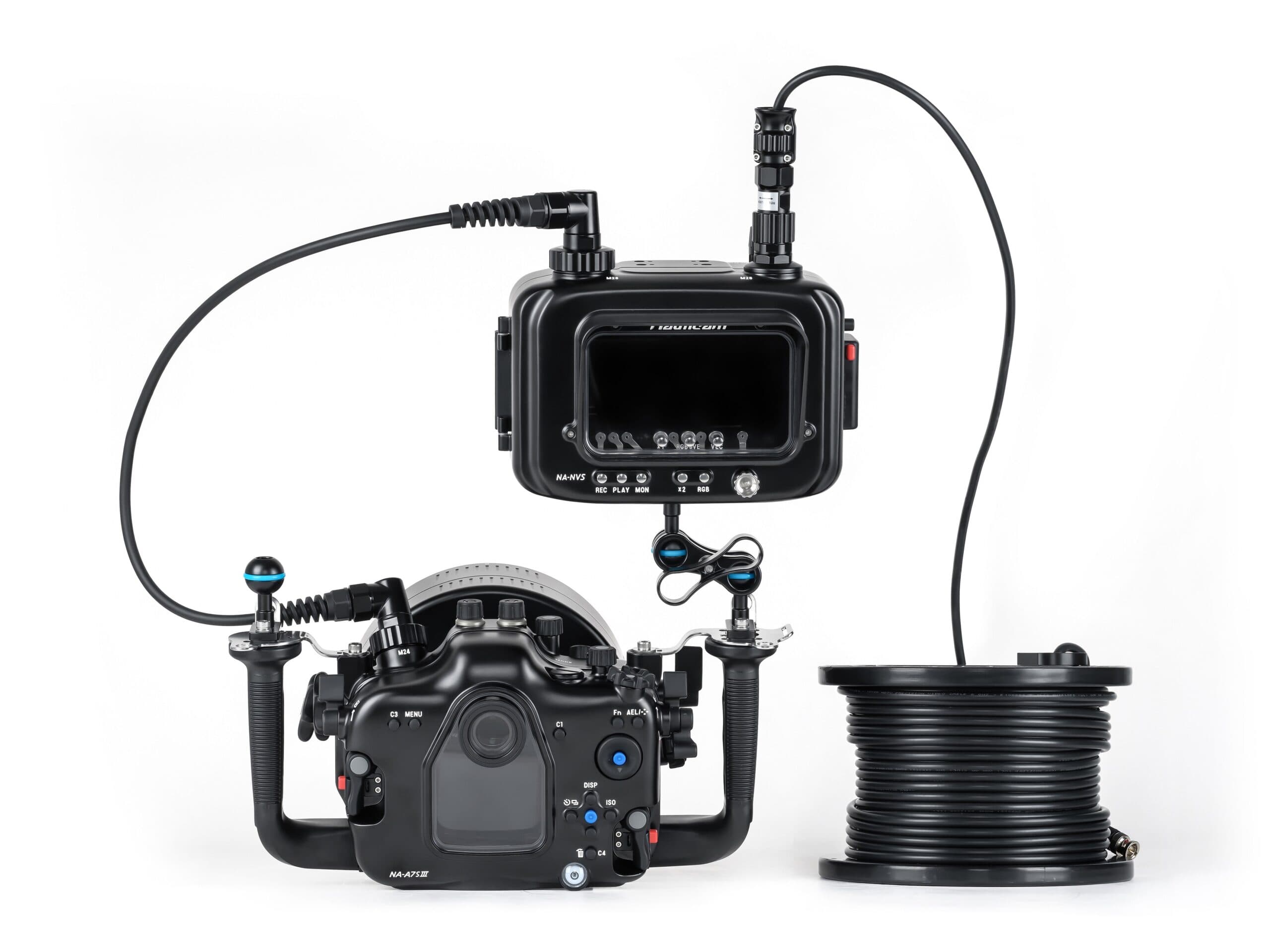

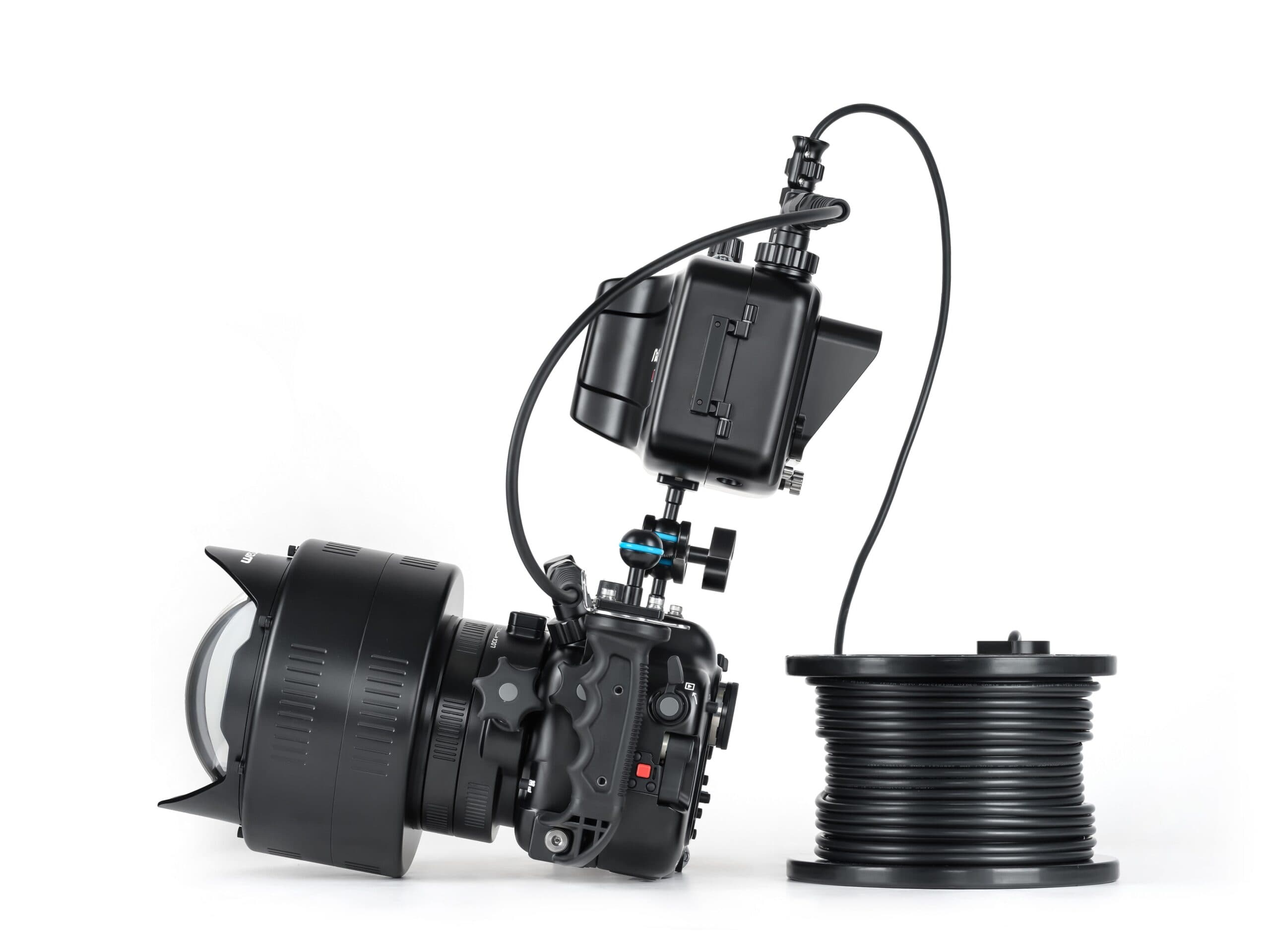

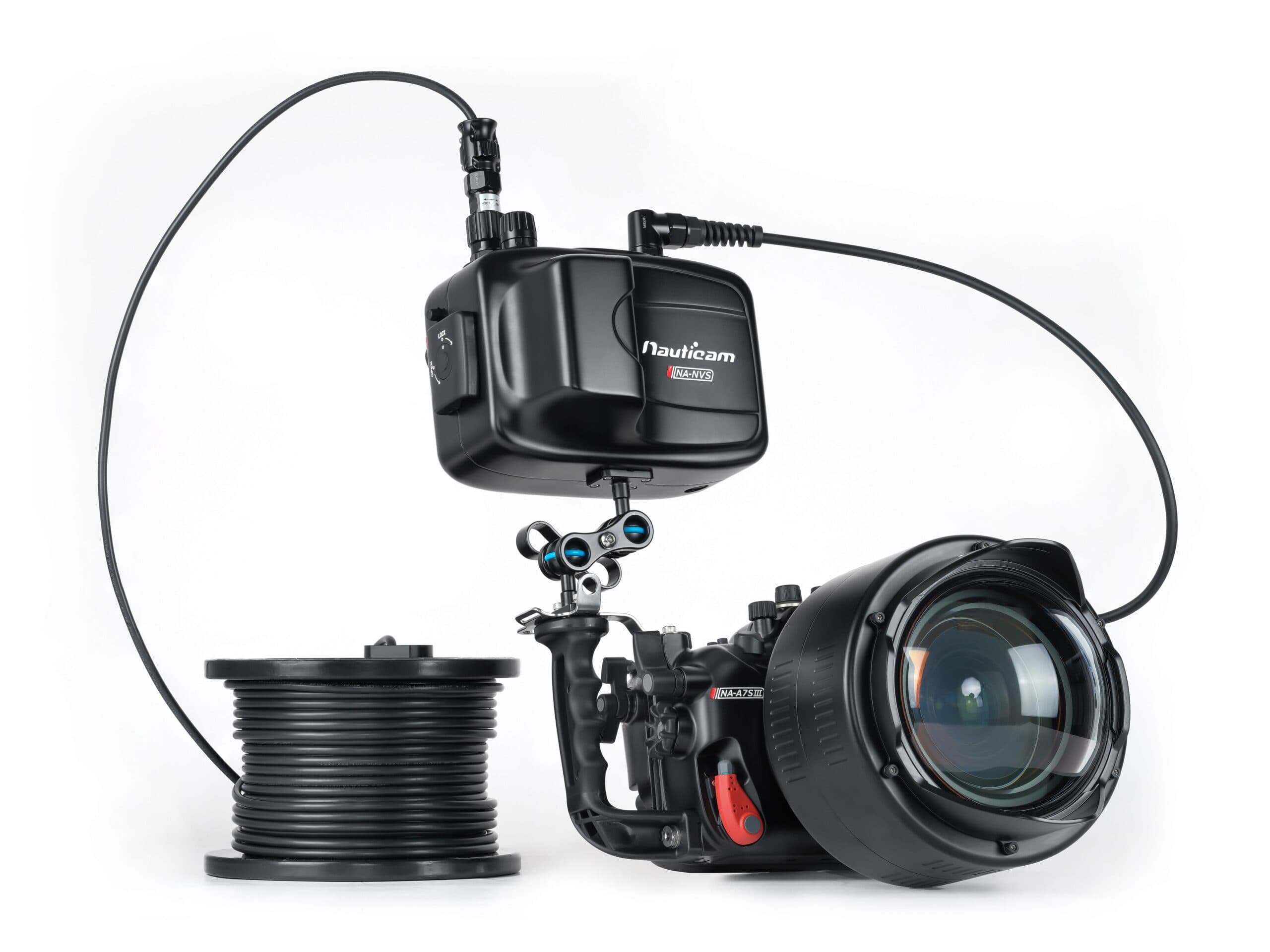

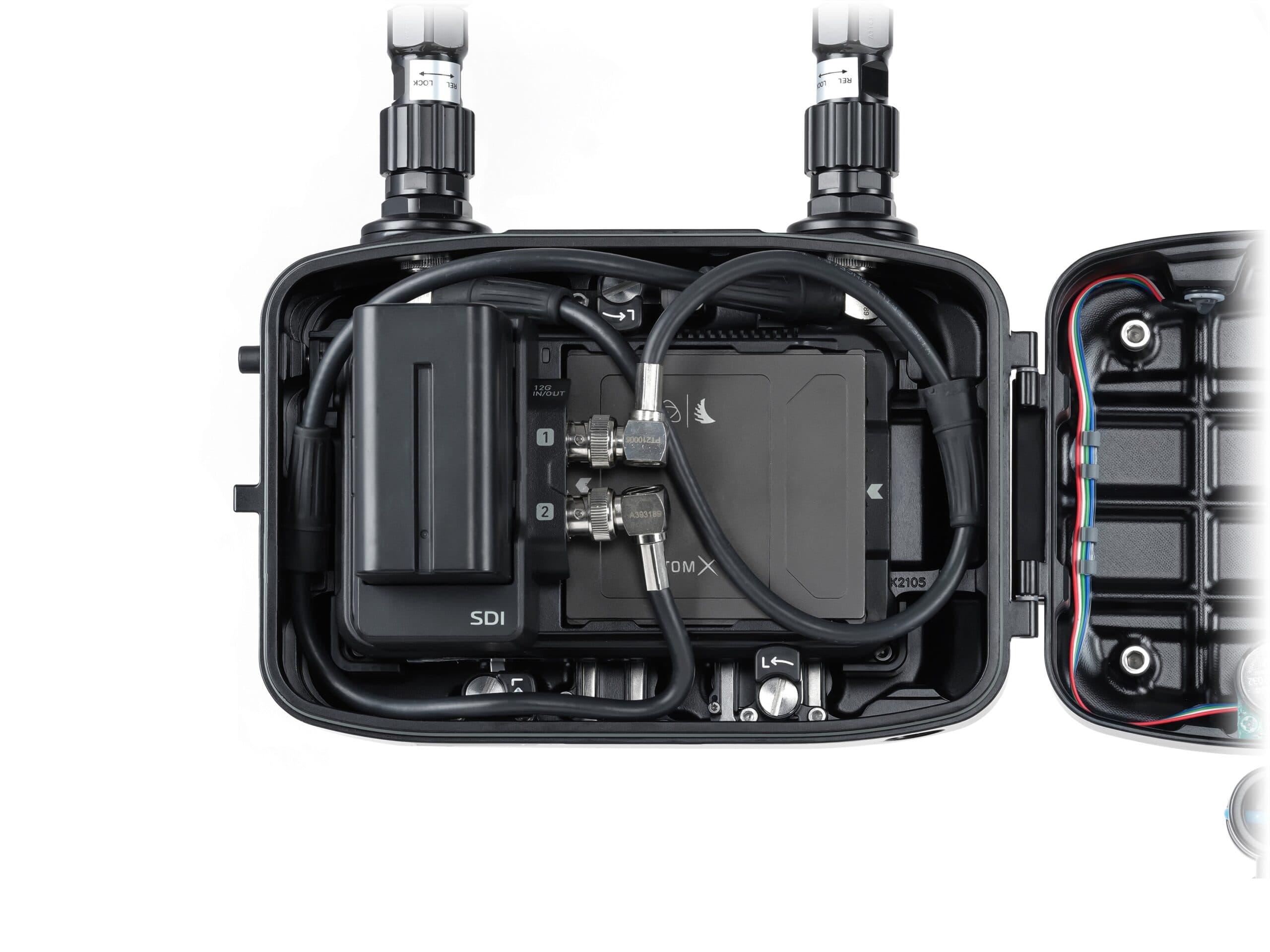

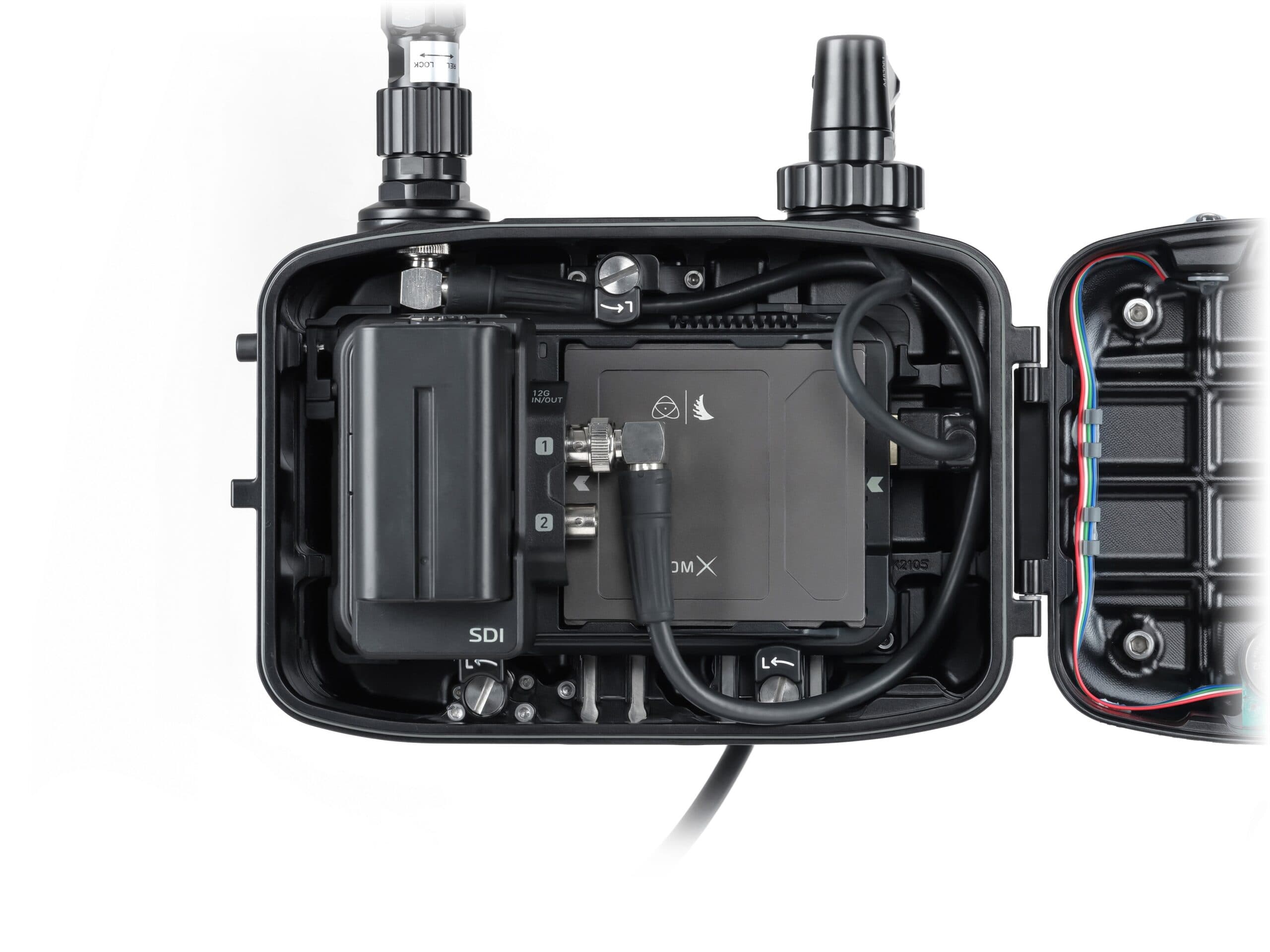

The Ninja V is easily mounted in the housing, dropping in without trays or other mounting accessories and is held in place by two rotating locking levers. The Ninja V with the AtomX SDI Module features both HDMI 2.0 and SDI inputs as well as an HDMI or SDI output and the NA-Ninja V-S supports both. With dual M28 bulkheads, a second HDMI or SDI cable can be run to another monitor. The Ninja V allows for the application of. cube format 3D LUTs to this output signal.

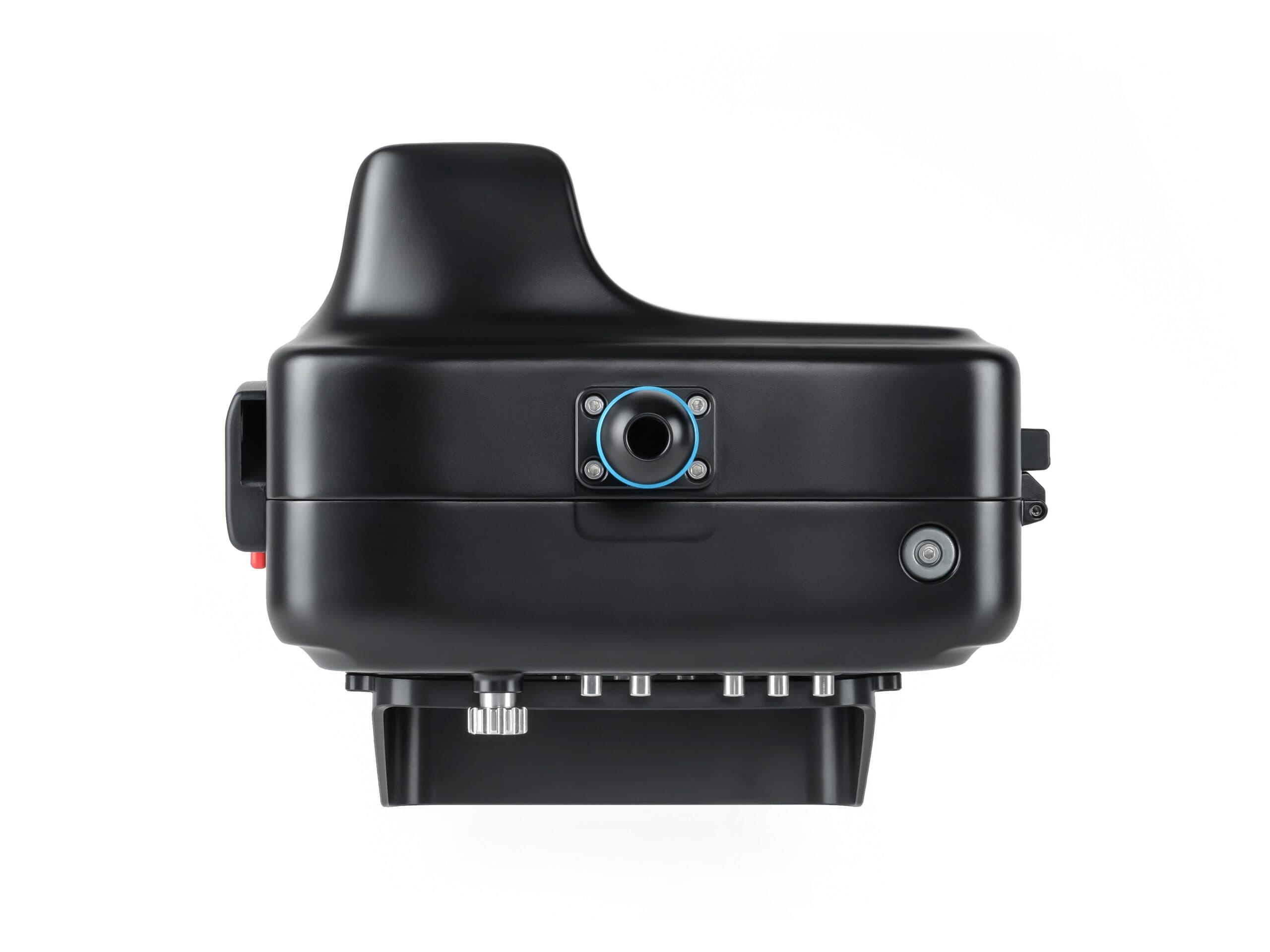

Battery and Vacuum System

The NA-Ninja V-S supports up to the NP-F970 size battery which provides up to 130 minutes of run time (105 minutes with SDI module) when recording 4K60p footage. A CR-2032 battery powers the vacuum check and leak detection system. When used with the included Vacuum Valve, the system gives real-time feedback about the watertight integrity of the housing through an easily visible multi-color LED on the top of the housing.

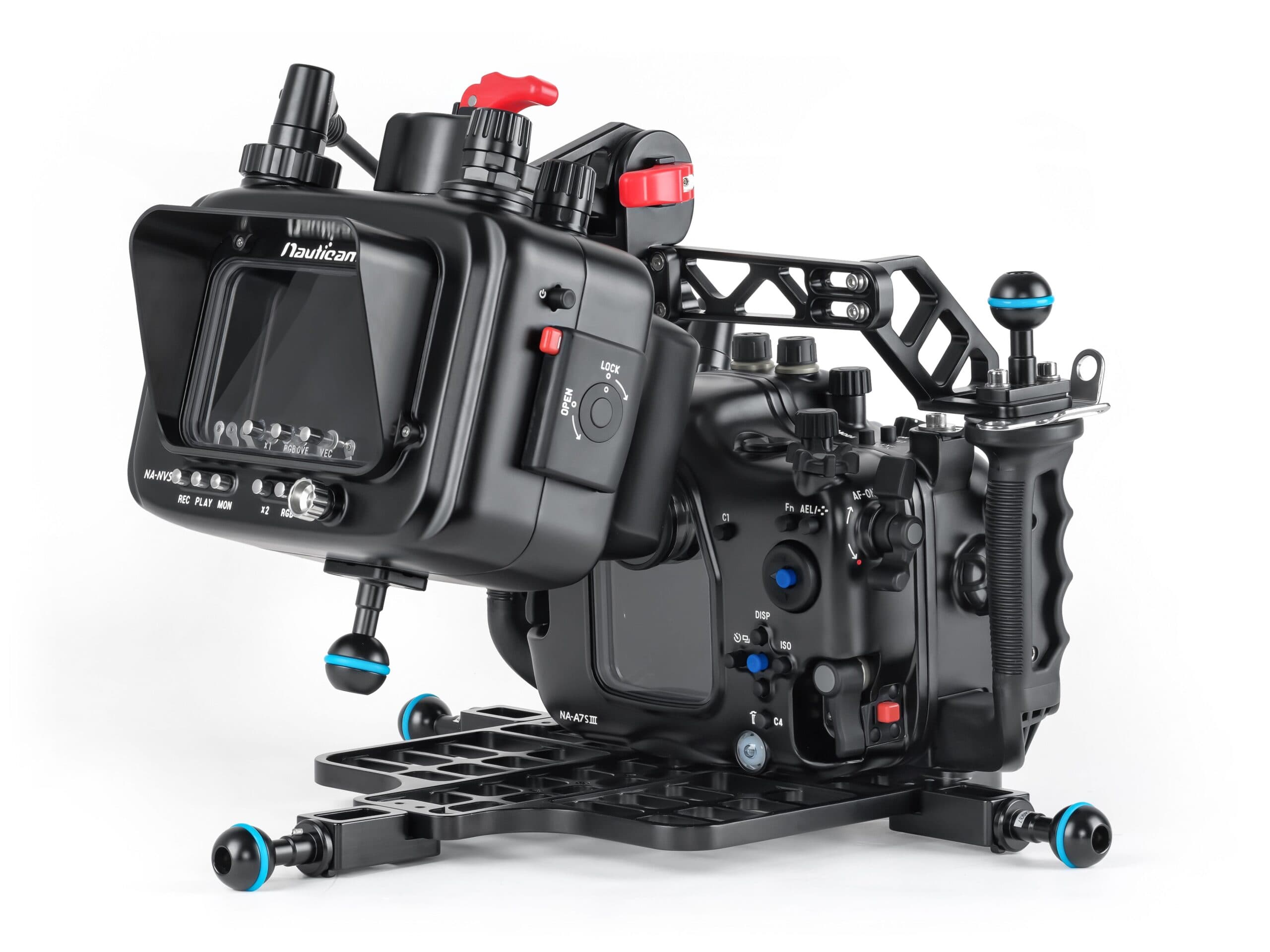

Control Access

Access to the touchscreen controls of the Ninja V are handled via a series of buttons and a selector knob beneath the screen of the housing including PLAY, REC, MON, RGB, PEAK and the Muti-Selector Lever.

resources

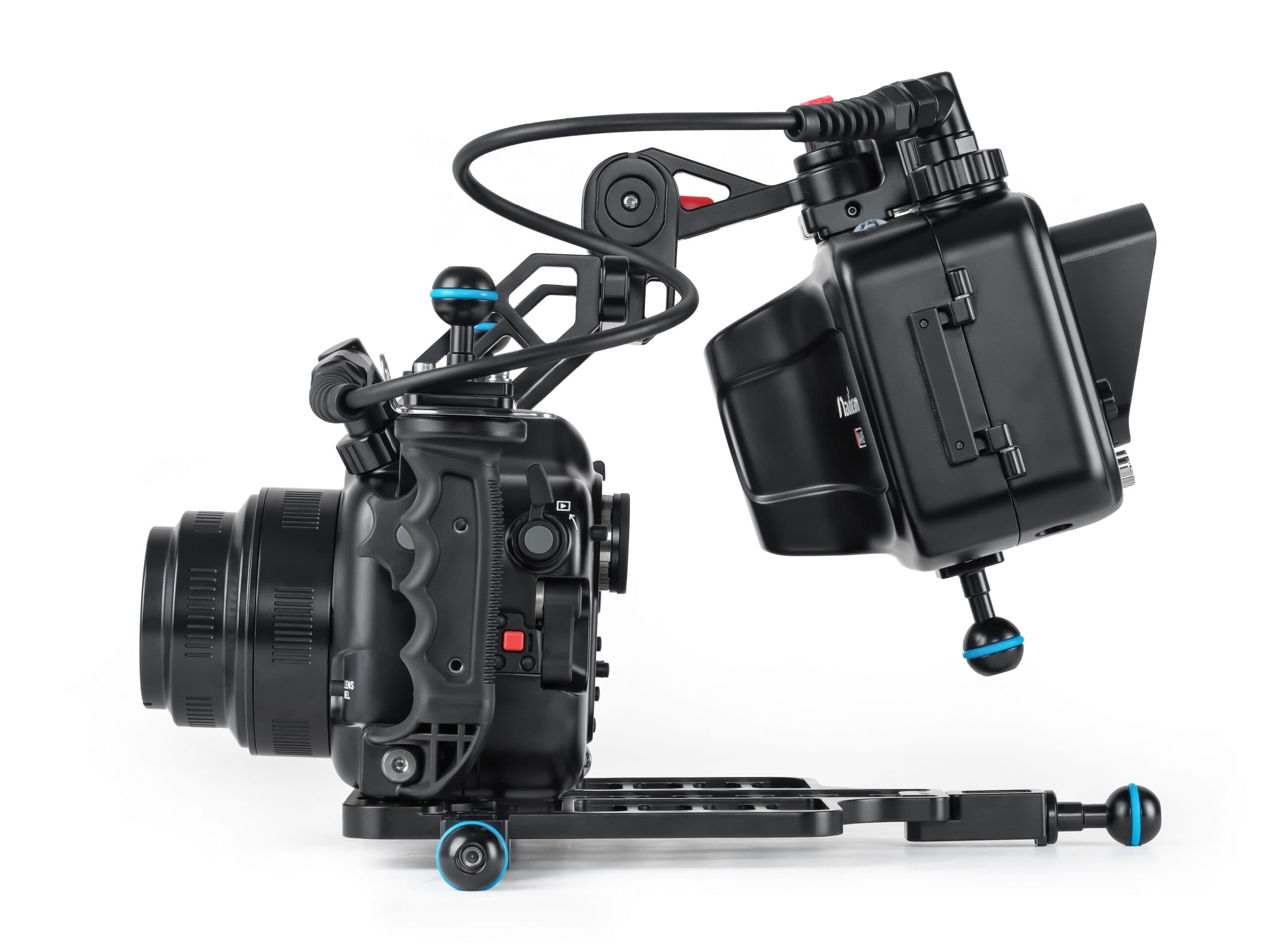

Nauticam Atomos monitor housing mounting option

What's In The Box:

NA-Ninja V-S Housing
Monitor Hood
M16 Vacuum Valve II (pre-installed) PN 25625
M16 SDI Bulkhead (pre-installed) PN25058
M28 to M16 Step Down Adapter (pre-installed) PN25080
Internal SDI Cable PN25060
M28 HDMI 2.0 Adapter (pre-installed) PN25089
Mounting Ball
Spare silicone rubber main o-ring PN 90137
O-ring removal tool and lubricant
CR2032 battery
Allen Wrench Set

Recommended Accessories for HDMI:

Recommended Accessories for SDI Input:

AtomX SDI Module require for SDI input and output
25058 M16 SDI Bulkhead
25060 SDI Cable in 0.4m Length
25061 SDI Cable in 0.75m Length ~For Connection Between SDI Bulkheads

Recommended Accessories for SDI Output:
